3000 lb. Cradle Boat Lift

3000 lb. Cradle Boat Lift
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

$1,283.00


Product Information

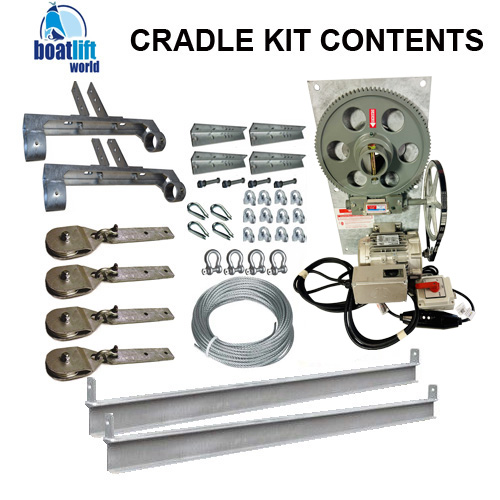

  Boat Lift 3000lb. Kit Includes:
  • 3000lb Capacity Max, Gear Unit 3/4 HP Marathon/Leeson TENV (Totally Enclosed Motor), 110 Volt (220 Volt Optional) and In-line GFCI, Lock on Switch, 14' Electrical Wire Motor to Switch(1)

  • Dual Pipe Bearing w/grease fitting (2)

  • Pulley Hangers 3/8 in. thick x 2 1/2 in. x 12 in. Galvanized (4)

  • 4 in. Pulleys *Galvanized Plates* 4 in. Aluminum Sheave w/Bronze 5/8 Bushing on 5/8 Shaft - LIFETIME WARRANTY (4)

  • 90 ft. Total 1/4 in. Galvanized Aircraft Cable (This will give 15' from upper pulleys down to all four corners to the cradles with a 10' wide boat slip) (Call us if additional amount of cable is needed)

  • 1/4 in. Galvanized Drop Forged Cable Clamps (12)

  • Shackles 1/2" (8)

  • Chock Bracket w/Bolt (4)

  • Bearing Bracket (4)

  • 1/4" Thimbles (not shown in diagram) (4)

  • Cradle Beams - 4" x 9 ft Length (2)
    Cradle will fit a boat up to 8 ft. wide & boat slip needs to be close to 10 ft. wide to fit.

(2 in. ID Schedule 40 Pipe Not Included *Purchase Locally*)

This kit works for a wide variety of boats. All hardware hot dip galvanized. Drive Pipe 2" ID Schedule 40 or 80 (not supplied). Timbers not included. Due to the variety of material thickness used in boat house construction, the bolts etc. are not supplied to connect the kit hardware to the boat house. These can be purchased locally to ensure the correct sizes. Normally 14 bolts/nuts required. Marathon Formerly GE. Motors are TENV Totally Enclosed Non Vented. They are not sealed motors and must be protected from rain and weather.

Cradle must be 1 ft. longer (minimum) than width of boat: Boat slip needs to be a minimum of 1 ft. wider than length of cradle.
Example: Boat 8' wide, minimum cradle 9' & boat slip 10ft. wide.

  Free Upgrades Include:
  • 4 in. Block Pulleys in Lieu of 3 in.

  • In-line GFCI in Lieu of In-Plug GFCI

  • Exclusive Formed Mounting Plate is Designed to Improve Strength and Totally Eliminate Deflection Problems Flat Plates Have. The Gears Are Manufactured in the U.S.A With the Best of Materials

  • 2 Year Electrical Warranty

  • 6 Year Gear Plate Warranty

FREE SHIPPING ON THIS ITEM (SHIPS BY FREIGHT LINE SIGNATURE REQUIRED)
