4000 lb. Overhead Steel Boat Lift

4000 lb. Overhead Steel Boat Lift
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

$1,895.00


Product Information

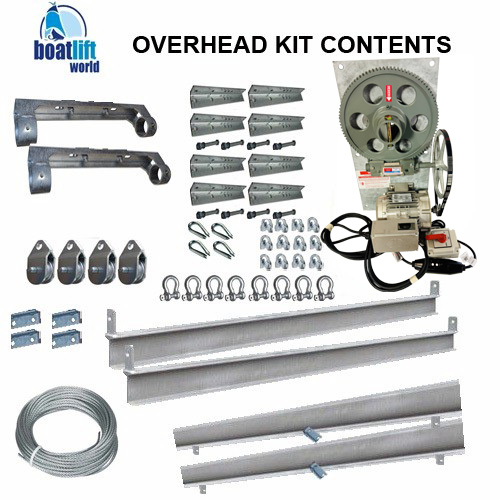

  Boat Lift 4000lb. Kit - $1895.00 (must call to order)
  • 4000lb Capacity max. Gear unit, 1hp. Marathon/Leeson motor TENV (Totally Enclosed Motor), 110V (220 Volt Optional), in-line GFCI (option totally sealed belt drive gear unit with cover see picture above and choose below), Lock on Switch, 14' Electrical Wire Motor to Switch(1)

  • Dual Pipe Bearing w/grease fitting (2)

  • 4” X 12’ 3” Galvanized Top I Beam w/ pulley, 4" Aluminum Sheave (Lifetime Warranty), Bronze Bushing, 5/8”Stainless Steel Bolt W/ Grease Fitting (2) (Please check upper cradle stock availability before purchasing.)

  • Upper I Beam Tie Down Brackets Galvanized (4)

  • 45 ft. Pieces Of 1/4 in. Stainless Steel Cable (2) (This will give 15' from upper pulleys down to all four corners to the cradles with a 10' wide boat slip) (Call us if additional amount of cable is needed)

  • 1/4 in. Galvanized Drop Forged Cable Clamps (12)

  • Shackles 1/2" (8)

  • Chocks w/ bolts Galvanized (Optional Pontoon Chocks Lift From The Floor Of Your Boat, Keeping Stress Off The Pontoons.) (8)

  • 1/4" Thimbles (not shown in diagram) (4)

  • Bottom Cradle Beam- 5" x 9', 5" x 9' 6", or 5" x 10' Available

(2 in. ID Schedule 40 Pipe Not Included *Purchase Locally*)

This kit works for a wide variety of boats. All hardware hot dip galvanized. Drive Pipe 2" ID Schedule 40 or 80 (not supplied). Timbers not included. Gear unit mounts to a wood beam. Due to the variety of material thickness used in boat house construction, the bolts etc. are not supplied to connect the kit hardware to the boat house. These can be purchased locally to ensure the correct sizes. PVC pipe over cables not supplied. Marathon Formerly GE. Motors are TENV Totally Enclosed Non Vented. They are not sealed motors and must be protected from rain and weather.

  Free Upgrades Include:
  • 1/4" Stainless Cable in Lieu of Galvanized

  • In-line GFCI in Lieu of In-Plug GFCI

  • Exclusive Formed Mounting Plate is Designed to Improve Strength and Totally Eliminate Deflection Problems Flat Plates Have. The Gears Are Manufactured in the U.S.A With the Best of Materials

  • 2 Year Electrical Warranty

  • 6 Year Gear Plate Warranty

FREE SHIPPING ON THIS ITEM (SHIPS BY FREIGHT LINE SIGNATURE REQUIRED)


  OPTIONAL: 4000 lb. Maintenance Free Sealed Gear Unit with Cover
  • Lifts Faster than the flat plate gear unit

  • Maintenance Free Sealed Gear Box

  • Permanently Lubed

  • Includes Cover

  • Includes Hanger Brackett
