Product Information
| | Boat Lift 6000lb. Side Drive Kit Includes: |

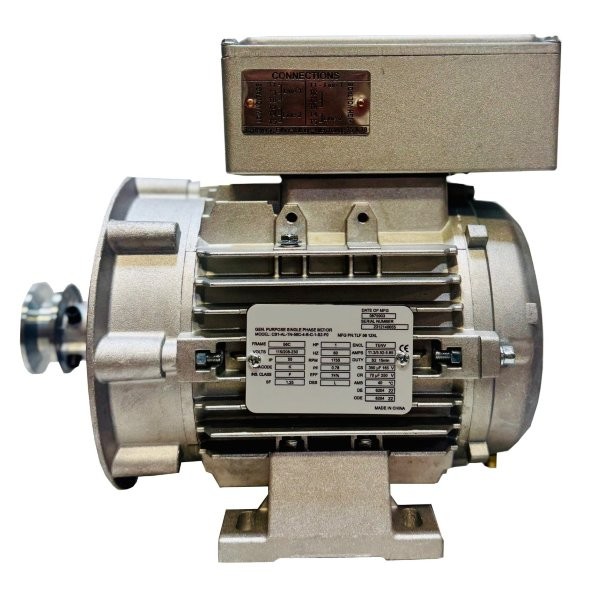

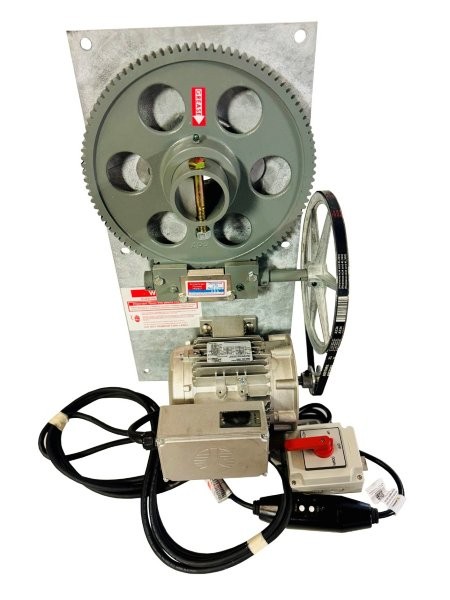

3000lb (6000 lb. compounded) Capacity Max, Gear Unit 3/4 HP TENV (Totally Enclosed Motor), 110 Volt (220 Volt Optional) and In-line GFCI, Lock on Switch, 14' Electrical Wire Motor to Switch(1) Special Dual Pipe Bearing w/grease fitting (2) Pulley Hangers 3/8 in. thick x 2 1/2 in. x 12 in. Galvanized (2) 4 in. Pulleys *Galvanized Plates* 4 in. Aluminum Sheave w/Bronze 5/8 Bushing on 5/8 Shaft (4) 150 ft. Total 1/4 in. Galvanized Aircraft Cable (This will give 15' from upper pulleys down to all four corners to the cradles with a 10' wide boat slip) (Call us if additional amount of cable is needed) 1/4 in. Galvanized Drop Forged Cable Clamps (12) Galvanized Shackles (4) Chock Bracket w/ bolts/nuts (8) Bearing Bracket (4) 1/4" Thimbles (not shown in diagram) (4) Galvanized Cradle Beams - Choose Between 8',8' 6",9', 9' 6", or 10' (2) Always check with the pontoon boat manufacturer to confirm which style chocks they prefer
to use on their boats before ordering. (V style or tall pontoon chocks)
(2 in. ID Schedule 40 Pipe Not Included *Purchase Locally*) |
This kit works for a wide variety of boats. All hardware hot dip galvanized. Drive Pipe 2" ID Schedule 40 or 80 (not supplied). Timbers not included. Due to the variety of material thickness used in boat house construction, the bolts etc. are not supplied to connect the kit hardware to the boat house. These can be purchased locally to ensure the correct sizes. Normally 14 bolts/nuts required. Motors are TENV Totally Enclosed Non Vented. They are not sealed motors and must be protected from rain and weather.
Cradle must be 1 ft. longer (minimum) than width of boat: Boat slip needs to be about 1' 6" wider than cradle being used.
Example 8' wide boat then minimum 9' cradle & slip (minimum) 10' 6"wide. 8'6"boat then cradle min. 9'6" & slip 11' wide.
4 in. Block Pulleys in Lieu of 3 in. In-line GFCI in Lieu of In-Plug GFCI Galvanized Steel Flat Gear Plate. The Gears Are Manufactured in the U.S.A With the Best of Materials. 1 Year Electrical Warranty 6 Year Gear Plate Warranty
|
FREE SHIPPING ON THIS ITEM (SHIPS BY FREIGHT LINE SIGNATURE REQUIRED)
